    10Kw Off Grid Solar System

    Ask Lasest Price
    Brand Name : kingsun
    Model Number : GTS-5KW-A
    Certification : CE,tuv,ul
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 500 Unit/Units per Month
    Delivery Time : 15
    • Product Details
    • Company Profile

    10Kw Off Grid Solar System

    Off Grid Solar Home System Power Storage Photovoltaic 10 Kw Solar System


    1, Description:

    Off grid solar sytem also called stand alone solar system. It does not connect with Grid or called Utility. It is very popular and suitable for remote area where there is no Pubilc power or Public power is instable.


    Why choose Off grid solar system?

    1. Safe & Reliable

    Professional Design

    Support utility grid and generator voltage input

    2. Flexible

    12V/2V Lead-acid Battery Optional

    Lithium Battery Optional

    PWM/MPPT Controller Optional

    Poly/Mono Solar Module Optional


    2, Parameters:

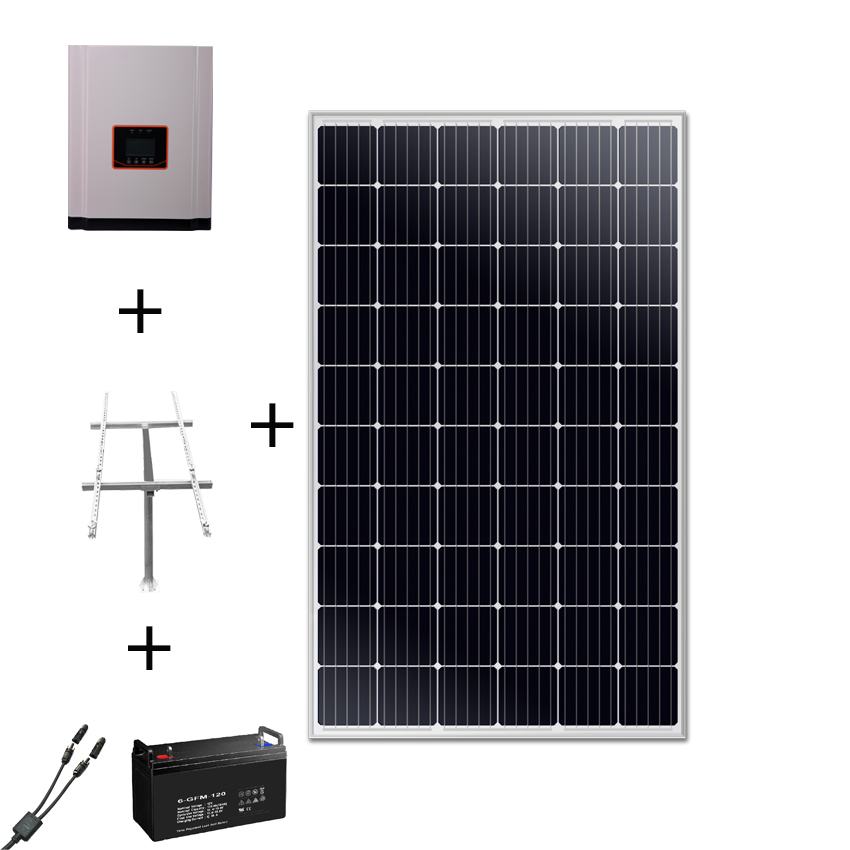

    Off Grid Solar System 10KW
    Components Name
    Description
    Quantity(PCS)
    GSP350-72, poly 350W
    Voltage:30V Size: 1950*990*40mm
    24
    PV Combiner Box
    3input 1output, customized;
    1(Optional)
    Inverter with built-in controller
    10KVA, Single phase/Split phase
    1
    Agm/Gel Battery
    12V 100AH,
    Free maintenance, Deep Cycle
    18
    PV Cable
    6mm2
    200m
    Connector
    DC 1500V
    10pairs
    Mounting bracket
    roof and ground type; Aluminum/
    Galvanized steel;Customized
    1set

    listGT5k-10kwh-2GT5k-20kwh-2
    EfficiencyMPPT efficiency99.90%99.90%
    Max efficiency97.60%98.10%
    Battery port efficiency98.10%98.50%
    Battery portOperating DC voltage range85V~110V170V-220V
    Charge/Discharge power2500W/3000W5000W/5500W
    Max Charge/Discharge current25A/30A25A/30A
    Communication interfacesRS485/CANRS485/CAN
    Reverse connect protectionYY
    PV portAbsolute maximum PV input voltage550V550V
    Operating MPPT voltage range120V-550V120V-550V
    Absolute maximum PV input power6000W6000W
    Rated PV input voltage380V630V
    Number of independent MPPT22
    MaxPV input power for each MPPT3300W3300W
    MaxPV input current for each MPPT13A/13A13A/13A
    Max input short circuit current for each MPPT15A/15A15A/15A
    DC connection switchOptionalOptional
    DC conection typeQuick fit connectorQuick fit connector
    Output ACGrid connection typeSingle phaseThree phase
    Absolute maximum AC power5000VA5000VA
    Norminal AC power5000W5000W
    Rated grid voltage/grid connected voltage range230V/180V-280V230V/310V-500V
    Rated grid frequency50Hz/60Hz50Hz/60Hz
    Norminal grid current21.7A21.7A
    Nominal power factor and adjustable range1 and 0.8leading-0.8lagging1 and 0.8leading-0.8lagging
    THD<3%<3%
    AC conection typeQuick fit AC circular connectorQuick fit AC circular connector
    Backup
    output
    Max apparent power6000VA6000VA
    Rated AC voltage230V230V
    Max AC output current26.1A26.1A
    Peak power and duration7000W/10s12000W/10s
    Out frequency range45Hz-55Hz/55Hz-65Hz45Hz-55Hz/55Hz-65Hz
    Switch times<10ms<10ms
    Connection typeQuick fit AC circular connectorQuick fit AC circular connector
    General dataDimensions(W*H*D)[mm]682*1460*526mm700*1900*450mm
    Weight200kg284kg
    environmental protection ratingIP65IP65
    CollingWind coolingWind cooling
    Communicationwifiwifi
    Display/monitoringLED/APP/WebLED/APP/Web
    MountingWall bracketWall bracket
    Ambient temperature-25º-60º-25º-60º
    Relative humidity≤95% (non-condensing)≤95% (non-condensing)
    Altitude without derating2000m2000m
    Acoustic noise emission level<35dB @ 1m<35dB @ 1m
    Over voltage categoryIII(AC side ),II(PV side)III(AC side ),II(PV side)
    Standby consumption<10W<10W
    Start voltage140V140V
    Isolation levelTransformerlessTransformerless
    Standard warranty5/10years5/10years
    StandardSafetyIEC62109-1/-2,IEC62477-1,IEC62619,UN38.3IEC62109-1/-2,IEC62477-1,IEC62619,UN38.3
    EMCEN61000-6-2/-3,EN61000-3-2/-3EN61000-6-2/-3,EN61000-3-2/-3
    GridAS/NZS 4777.2,NRS 097-2-1:2017,GBT 34133-2017AS/NZS 4777.2,NRS 097-2-1:2017,GBT 34133-2017

    3, Usage with On Grid Solar System:

    Solar Panel

    Poly Solar Panel, Mono Solar Panel, PERC Solar Panel, ETC.
    PID free PV module
    0-5W positive power tolerance
    100% full EL inspection
    Superior quality control

    25 years warranty

    Grid Tie Inverter

    MPPT efficiency up to 99.5%
    Integrated DC switch
    IP65 protection rating

    Real time monitoring available

    Monitoring

    Monitoring device: Wifi/Shine Lan/Shine WebBox

    Get real-time data in everywhere of your solar system on your Cell Phone or PC

    PV Combiner Box

    DC 1000V
    Lightening Arrester
    DC Breaker, Fuse, SPD inside
    IP65 Protection Grade

    PV Cable&PV Connector

    Cross Section: 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, ETC. Colors: Black For STD, Red Optional.
    Lifetime: 25 Years

    Mounting Structure(Mounting Brakets)

    Pitched roof mounting structure
    Flat roof mounting structure
    Ground mounting structure
    Ballast type mounting structure
    Car parking lot mounting structure

    Compatible for all types solar modules

    4, FAQ

    Q one.Do you have MOQ?
    Depands on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
    Q two.Should the customer pay the delivery fee,How much is it?
    For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
    If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
    If you do not request,I will choose a cheap one in China.
    Q three .How about the after sale service?
    1)We will always keep the quality the same with the same and if there is something with the quality,we will make compensaton for our coustomers.
    2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
    3)We will trace the goods from the production to selling,we will slove the problems in the selling for our coustomers.
    Q four.When can I get a price?
    We usually quote within 24hours after we get your inquiry.

    5, More picture:








    Our design developers has more than 10 years working experience in solar energy field, all design engineers are working tirelessly to perfect our products to make its always in the leading level. We desire to solve 2B business, provide standardized products, core competencies is high cost performance. we also desire to solve the 2C business and provide personalized products. The core competencies are market, brand and sales channel. We are striving to build KingSun to be an international leading manufacturer of Solar terminal application products.
