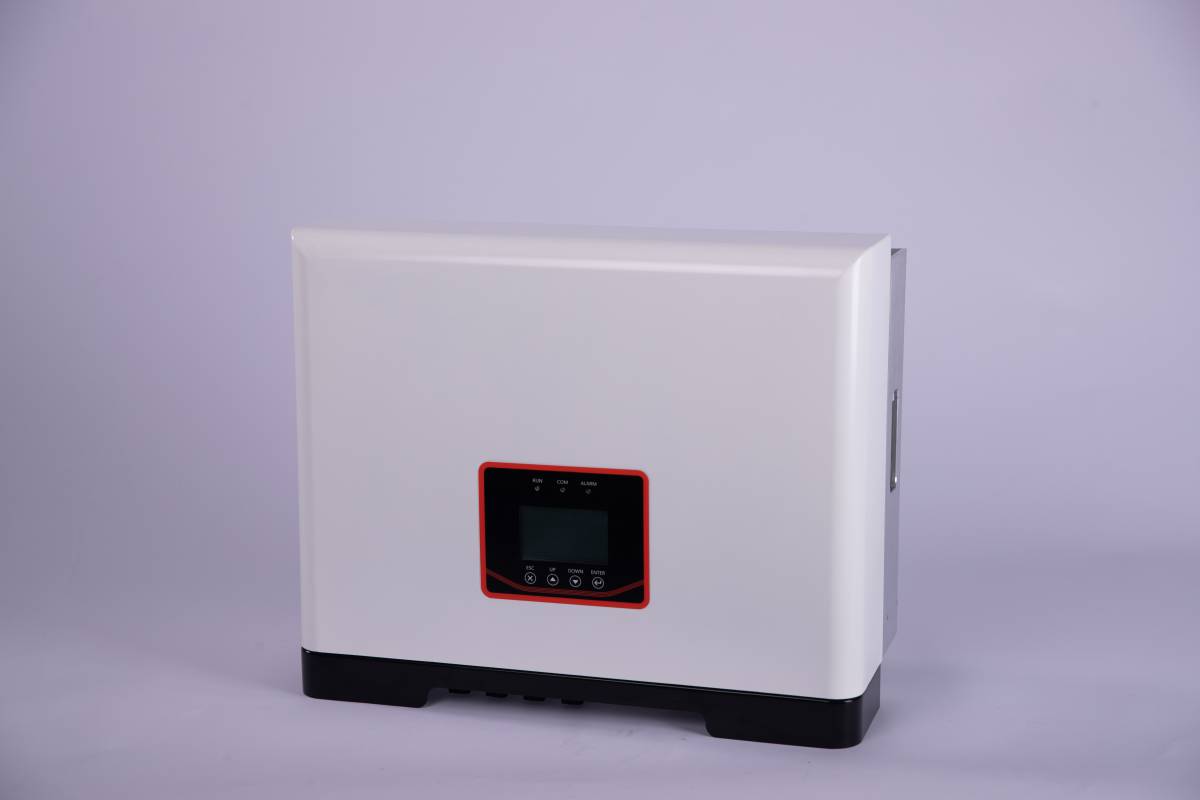

CQC Pure Sine Wave 30KW On Grid Solar Inverters , Solar DC AC Inverter

Ask Lasest Price
Brand Name :	king sun
Model Number :	GT-12kw
Certification :	CE,SGS,TUV,IEC,CQC,
Price :	$900
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	Production of 500 inverters per day
Delivery Time :	7

Add to Cart

Product Details
Company Profile

CQC Pure Sine Wave 30KW On Grid Solar Inverters , Solar DC AC Inverter

Delivery

CQC Pure Sine Wave 30KW On Grid Solar Inverters , Solar DC AC Inverter

		GT-20kW-B	GT-17KW-B	GT-15KW-B	GT-12KW-B
Efficiency	Max efficiency	98.50%	98.43%	98.30%	98.20%
	Euro efficiency	98.10%	98.00%	97.90%	97.80%
	MPPT	99.90%	99.90%	99.90%	99.90%
PV port	Absolute maximum PV input voltage	1050V	1050V	1050V	1050V
	Start-up voltage	180V	180V	180V	180V
	Rated PV input voltage	630V	630V	630V	630V
	MPPT range for full load	450V-800V	450V-800V	450V-800V	500V-850V
	Operating MPPT voltage range	200V-1000V	200V-1000V	200V-1000V	200V-950V
	Number of independent MPPT	2pcs(2+2)pcs	2pcs(2+2)pcs	2pcs(2+1)pcs	2pcs(1+1)pcs
	MaxPV input current for each MPPT	23A23A	23A23A	23A12A	12A
	Max input short circuit current for each MPPT	28A28A	28A28A	28A15A	15A
Output AC	Nominal AC power	20000W	17000W	15000W	12000W
	Absolute maximum AC power	21500VA	18800VA	16500VA	14000VA
	Rated grid voltage/grid connected voltage range	400V(230V)270V-480V
	Grid type	3LNPE	3LNPE	3LNPE	3LNPE
	Nominal grid current	31A	28A	23A	20.3A
	Rated grid frequency	50Hz60Hz 45Hz-55Hz55Hz-65Hz
	Output THDi	<3%	<3%	<3%	<3%
	Dc component	<0.5%*In	<0.5%*In	<0.5%*In	<0.5%*In
	Nominal power factor and adjustable range	1 and 0.8 leading-0.8 lagging
Protection	Dc switch	Y	Y	Y	Optional
	Output over current protection	Y	Y	Y	Y
	Anti-islanding protection	Y	Y	Y	Y
	Current surge protection	DC level 2AC level3
	Dc reverse	Y	Y	Y	Y
	Residual current	Y	Y	Y	Y
	Insulation resistor detection	Y	Y	Y	Y
	Current overvoltage protection	Y	Y	Y	Y
General data	Dimensions(W/H/D)mm	505420210
	Weight	25kg	25kg	23kg	20kg
	IP grade	IP65	IP65	IP65	IP65
	Mounting	Wall bracket	Wall bracket	Wall bracket	Wall bracket
	Cooling	Wind cooling	Wind cooling	Wind cooling	Wind cooling
	Isolation level	Transformerless	Transformerless	Transformerless	Transformerless
	Standby consumption	<15W	<15W	<12W	<10W
	Ambient temperature	-30℃-60℃(derating at 45℃)
	Relative humidity	0~100%
	Operating altitude	<3500m,derating at 2000m
	Display/monitoring	LED
	Communication	GPRSWIFI
	AC/DC connection	Plug
Standard	Safety	IEC62109-1/-2,IEC62116,IEC61727
	EMC	EN61000-6-2, EN61000-6-3
	Grid	AS4777.2,NBIT 32004-2018
