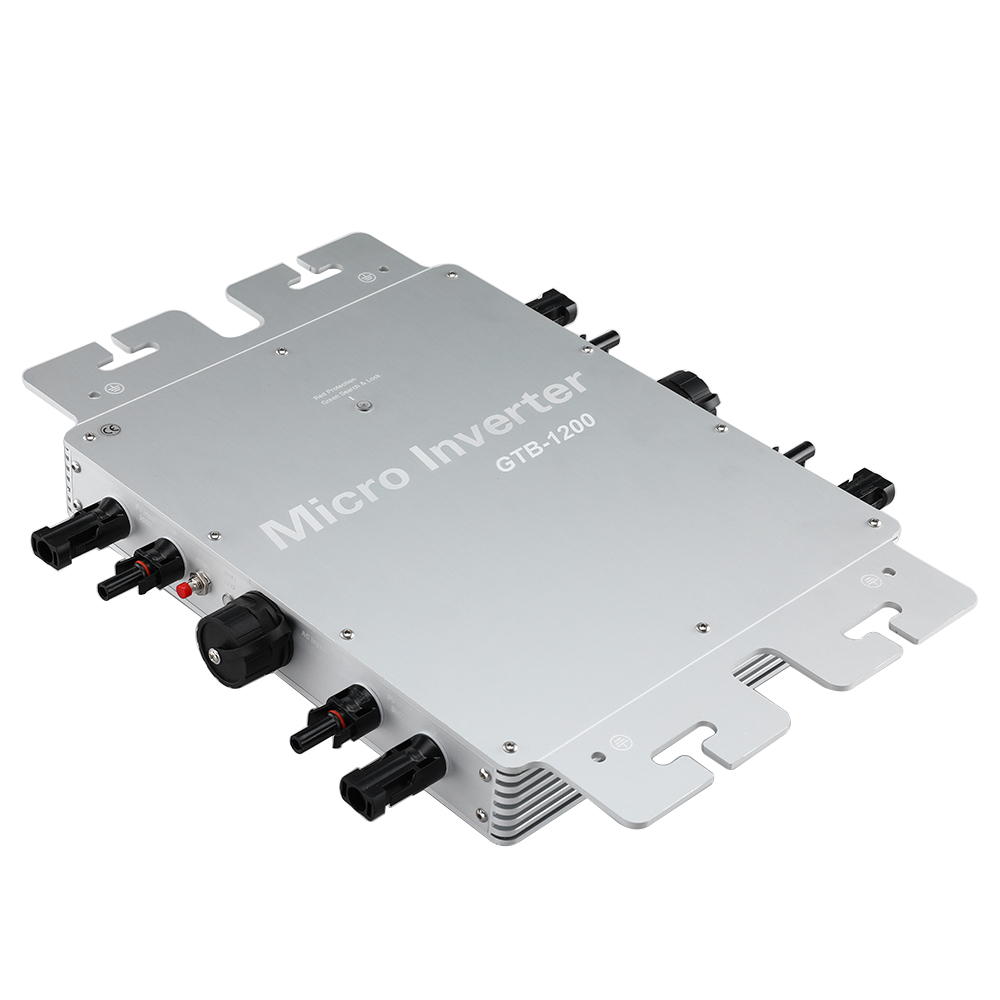

1200W Waterproof Solar Inverter IP67Solar Micro Inverter Made In
China Output Voltage230v/120v
1, Description:
Please connect the inverter following the operation instruction
show above. If have any question
please contact with relative persons.
Non-professionals do not disassemble.Only qualified personnel may
repair this product.
Please install inverter in the low humidity and well- ventilated
place to avoid the inverter over-heating,and
clear around the inflammable and explosive materials.
When using this product, avoid children touching, playing, to avoid
electric shock.
Connected solar panels, battery or wind generators DC input DC
power supply cable.
Accessories for product:
1. One warranty card;
2. One user manual;
3. One certificate of quality;
4. 1 pouch of screw for micro inverter installation; 5.One AC
Cable;
2, Parameters:
| Model | GTB-1200 |
| Maximum input power | 1200Watt |
| Peak power tracking voltage | 22-50V |
| Min / max starting voltage | 22-55V |
| Maximum DC short-circuit | 60A |
| Maximum input operating current | 54.5A |
| Output Data | @120V | @230V |
| Peak power output | 1200Watt | 1200Watt |
| Rated output power | 1200Watt | 1200Watt |
| Rated output current | 10A | 5.2A |
| Rated voltage range | 80-160VAC | 180-260VAC |
| Rated frequency range | 48-51/58-61Hz | 48-51/58-61Hz |
| Power Factor | >99% | >99% |
| Max unit per branch circuit | 3pcs(Single-phase) | 5pcs(Single-phase) |
| Output Eifficiency | @120V | @230V |
| Static MPPT efficiency | 99.5% | 99.5% |
| Maximum output efficiency | 95% | 95% |
| Night time power consumption | <1W | <1W |
| THD | <5% | <5% |
| Exterior & Feature | |
| Ambient temperature range | -40°C to +60°C |
| Dimensions (L × W × H) | 365mm×300mm×40mm |
| Weight | 2.81kg |
| Waterproof rating | IP65 |
| Cooling | Self-cooling |
| Communication Mode | WiFi mode |
| Power transmission mode | Reverse transfer,load priority |
| Monitoring System | Mobile APP, PC browser |
| Electromagnetic Compatibility | EN50081.part1 EN50082.Party1 |
| Grid disturbance | EN61000-3-2 Safety EN62109 |
| Grid detection | CE EN-50438 |
| Certificate | CE , |
3, Usage with Solar Inverter:
Grid-tied, on-grid, utility-interactive, grid intertie and grid
backfeeding are all terms used to describe the same concept – a
solar system that is connected to the utility power grid.
4, FAQ
Q one.Do you have MOQ?
Depands on different ideas, Can be negotiated.The larger the
quantity is, the competitive the unit price will be.
Q two.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we
must get delivery fee.
If you tell me to use the appointed Express,you will give me your
express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q three .How about the after sale service?
1)We will always keep the quality the same with the same and if
there is something with the quality,we will make compensaton for
our coustomers.
2)We will suggest our packing and take charge in our packing,we
will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will
slove the problems in the selling for our coustomers.
Q four.When can I get a price?
We usually quote within 24hours after we get your inquiry.
5, More picture:

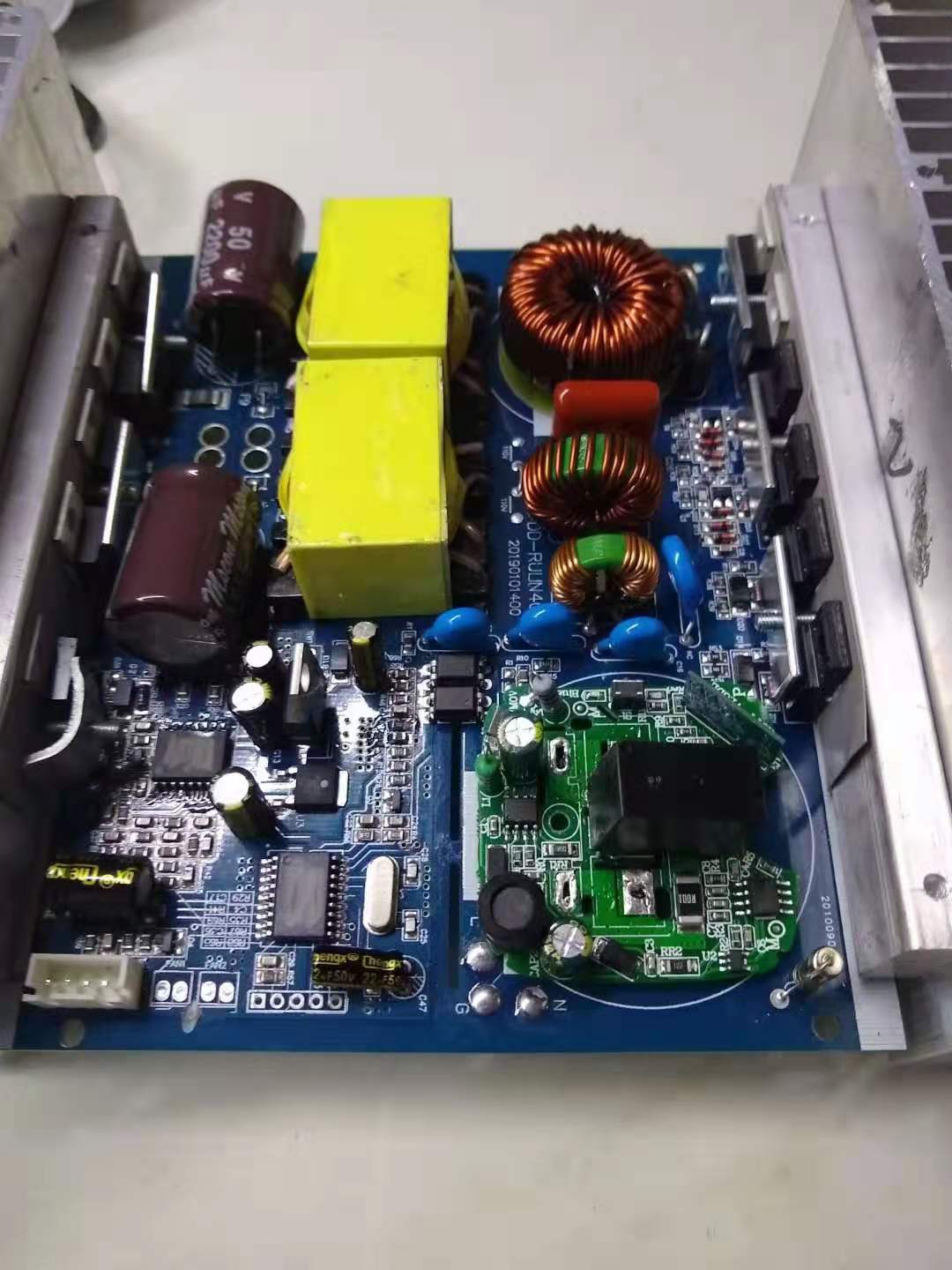

Product Processing
Product Packing
Delivery
Our design developers has more than 10 years working experience in
solar energy field, all design engineers are working tirelessly to
perfect our products to make its always in the leading level. We
desire to solve 2B business, provide standardized products, core
competencies is high cost performance. we also desire to solve the
2C business and provide personalized products. The core
competencies are market, brand and sales channel. We are striving
to build KingSun to be an international leading manufacturer of
Solar terminal application products.
