Low Noise 10000W 220V Solar Power Inverter For Home

Ask Lasest Price
Brand Name :	king sun
Model Number :	GT-PH
Certification :	CE,SGS,TUV,IEC,CQC,
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	Production of 500 inverters per day
Delivery Time :	7

Add to Cart

Product Details
Company Profile

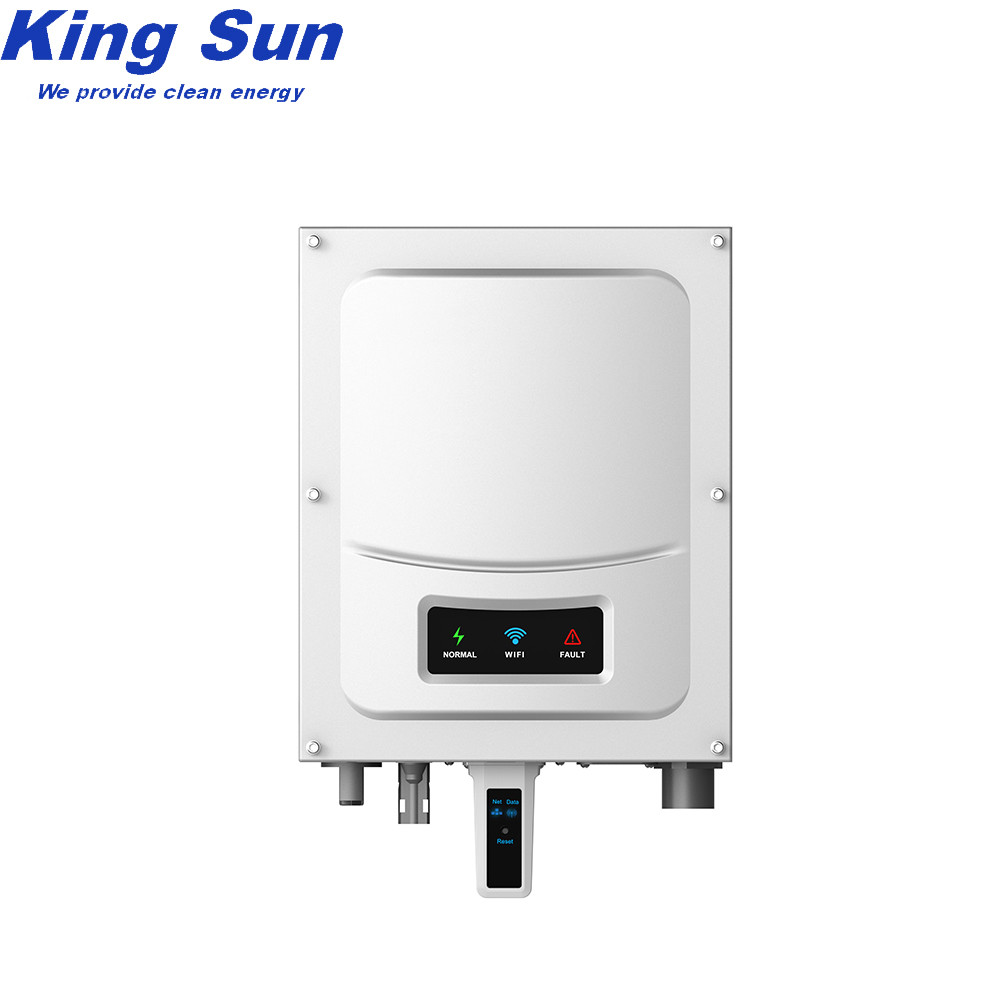

Low Noise 10000W 220V Solar Power Inverter For Home

High Efficiency Germany 2.5KW On Grid Solar Inverters Home Use 10000w Solar Inverter

1, Description:

• High Frequency On Grid Solar Inverter

• Pure sine wave output

• Rate power: 2.5-6KW

• MPPT efficiency up to 99.50%

• Multiple communications: USB,WIFI etc

• Monitoring inverters freely via mobile phonese APP

• Fanless low-noise design

• IP65 water-proof and dust-proof

2, parameters:

MODEL		2500	3000	3600M	4200M	4600M	5000M	6000M
RATED POWER(W)		2500	3000	3600	4200	4600	5000	6000
PV INPUT(DC)	Maximum recommended DC power(W)	2875	3450	4100	4800	5300	5750	7000
	Nominal DC operating voltage(V)	360
	Maximum DC voltage(V)	550
	Start voltage(V)	100
	MPPT voltage range(V)	80~550
	Maximum input current(A)	11	11	1111	1111	1111	1111	1111
	No.of MPP tracker	1		2
	Strings per MPP tracker	1
GRID OUTPUT(AC)	Nominal AC output power(W)	2500	3000	3600	4200	4600	5000	6000
	Maximum AC output power(VA)	2500	3000	3600	4200	4600	5000	6000
	Nominal output voltage(V);range(V)	220 230 240;180-280
	AC grid frequency(Hz);range(Hz)	5060;45~5555-65
	Nominal output current(A)	10.9	13	15.7	18.3	20.0	21.8	26.1
	Maximum output current(A)	11.4	13.7	16.4	19.1	21.0	22.8	27.3
	Total harmonic distortion i(THDi)	<3%
	Power factor at rated power	1
	Displacement power factor	0.8leading ～ 0.8lagging
	AC connection	Single phase
EFFICIENCY	Maximum efficiency	97.2%	97.2%	97.4%	97.4%	97.4%	97.4%	97.4%
	Euro-efficiency	96.8%	96.8%	97.0%	97.0%	97.0%	97.0%	97.0%
	MPPT efficiency	99.5%
	Self-Consumption night(W)	<1
PROTECTION DEVICES	DC reverse polarity protection	Yes
	DC switch rating for each MPPT	Yes(opt.)
	Output over current protection	Yes
	Output overvoltage protection-varistor	Yes
	Ground fault monitoring	Yes
	Grid monitoring	Yes
	Integrated all-pole sensitive leakage current	Yes
PHYSICAL	Net weight (kg)	10	10	13.5	13.5	14.5	14.5	16.5
INTERFACE	DC connection	H4/MC4
	AC connection	Connector
	Display	LED
	Communication interfaces	Wi-Fi USB GPRS
ENVIRONMENT	Ingress protection rating	IP65
	Humidity	0~95% RH (No condensing)
	Operating temperature range	-25℃ ~+60℃ With derating above 45℃
	Cooling concept	Natural
	Noise emission(typical)[dB]	≤25
	Altitude	<4000m
OTHERS	Topology	transformerless
	Warranty	Standard 5years/10 years(opt.)
	Certificatesand approvals	CE/IEC62109	CE/IEC62109	CE / IEC62109 / CQC

3, usage with Monocrystalline Solar Panel:

Solar panels, generally comprising of arrays of photovoltaic cells, use the solar energy directly from the sun to generate electricity for our daily use. Being environment friendly in nature, solar panels collect the solar energy which is available in abundance on our planet and convert it using the advanced technology developed by human beings. This invention of humans has led to a great achievement in world s history of conserving non-renewable resources and saving the planet as well as the natural resources from depletion. This concept is already famous in countries like Australia, United Kingdom and United States of America, etc. and is becoming very popular in solar panels china market as well. Even used solar panels are being used in these countries so that the installation cost reduces further and it is easy for the people to generate green energy.

4, adventage:

100% Cells Sorting

Ensure Colour and Power Difference.

Ensure high yields,consistent performance and durability,

First of 52 steps strict quality control and inspection process.

100% "Zero"

Defects Objective Before Shipment.

Most stringent acceptance criteria and tightest tolerance,

Ensure the best modules on the market- guaranteed!

100% Optimal Testing

Ensure 3% Positive Power Tolerance

Comprehensive QC information management system

5, FAQ

Q one.Do you have MOQ?
Depands on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q two.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q three .How about the after sale service?
1)We will always keep the quality the same with the same and if there is something with the quality,we will make compensaton for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will slove the problems in the selling for our coustomers.
Q four.When can I get a price?
We usually quote within 24hours after we get your inquiry.

6, More picture:

Low Noise 10000W 220V Solar Power Inverter For Home

Delivery

Low Noise 10000W 220V Solar Power Inverter For Home
