Mini Solar Panel 65W Solar Panel Solar 150w For Home Solar Light
System
1, Description:

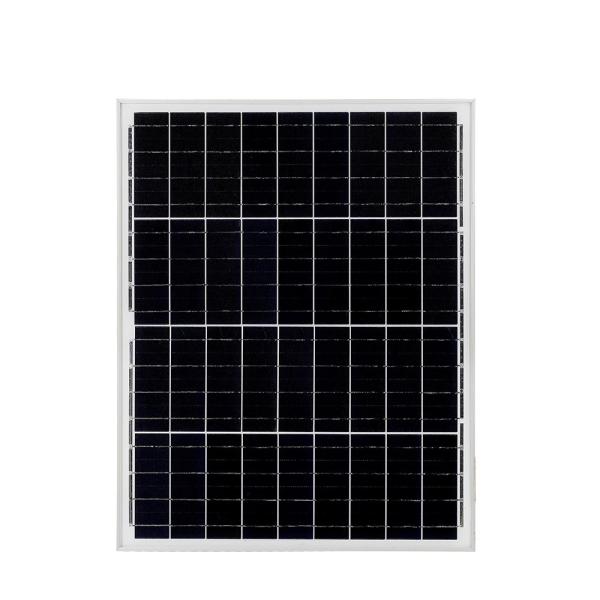

Polycrystalline Solar Panel:
Anti reflecting coating and hightransmission rate glass increase
the power output and mechanical strength of solar
module.
Aluminum Frame: Without screw, corner connection. 10 holes on
theframe realizes easy installation.
Superior Junction Box: Multi-function junction box with water
proofcapabilities.
Long Lifespan: >= 25 years.
Tolerance: +/-3%.
Good endurance for atrocious weather such as wind and hails.
Effective resistance to moisture and etching, free from geographic
restriction.
Polycrystalline Solar Panel Complied with standards of CE, TUV and
IEC.

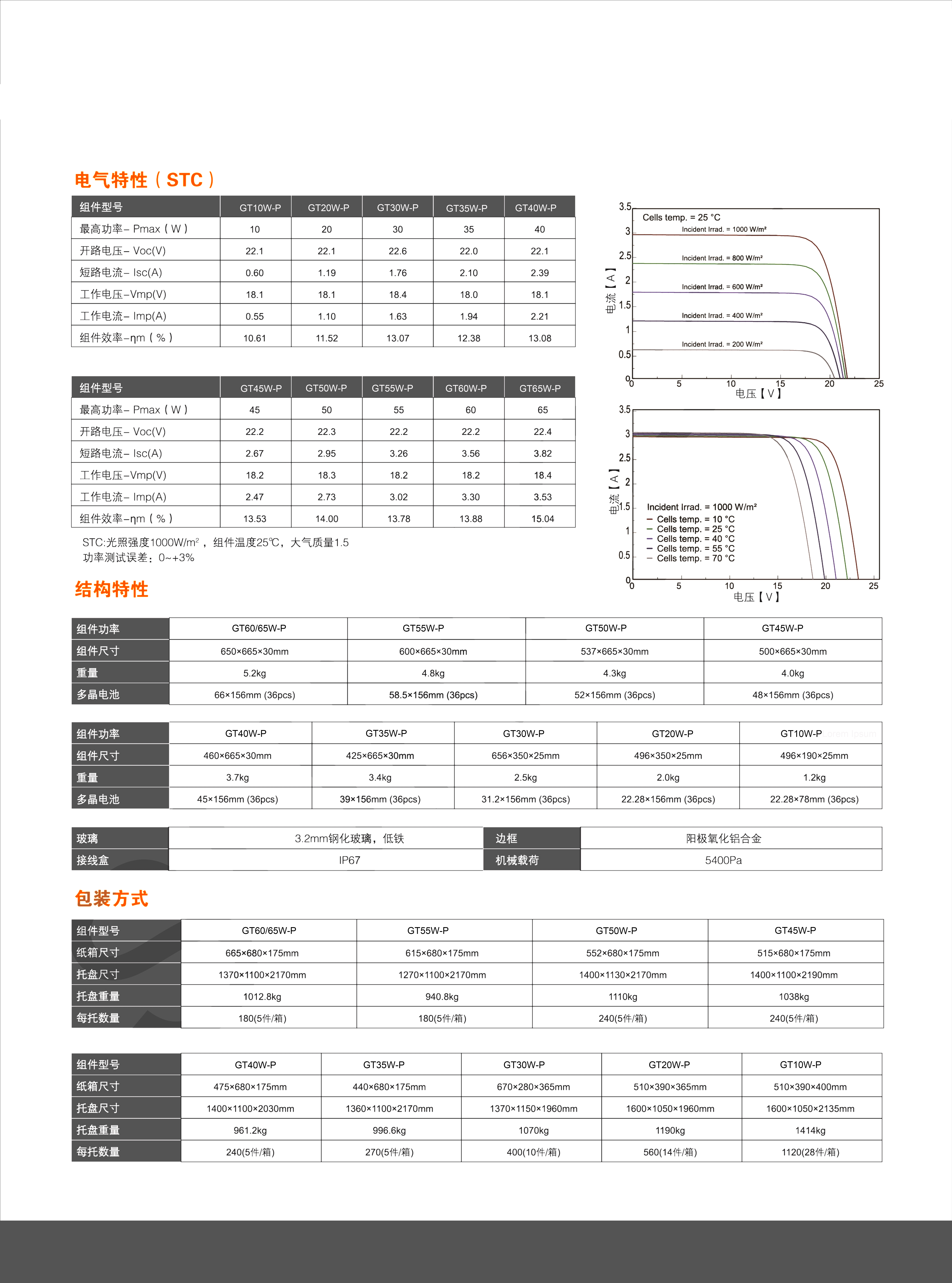

2, Parameters:
| GT10-65W-P |
| Power Tolerance(W) | (0-3%) |
| Current at Pmax - Imp(A) | 0.55-3.53 A |
| Module Efficiency-nm % | 10.61～15.04% |
| Operating Temperature | (-40℃～+80℃) |
| Front Glass | 3.2mm |
| Output Cables | 4.0mm²,cable length:1000mm |
| Junction box | IP67 |
| Mechanical load | 5400 Pa |
| Mechanical load | MC4 |
| STC | Irradiance 1000w/m² |
3, Usage with Polycrystalline Solar Panel:
Solar panels, generally comprising of arrays of photovoltaic cells,
use the solar energy directly from the sun to generate electricity
for our daily use. Being environment friendly in nature, solar
panels collect the solar energy which is available in abundance on
our planet and convert it using the advanced technology developed
by human beings. This invention of humans has led to a great
achievement in world s history of conserving non-renewable
resources and saving the planet as well as the natural resources
from depletion. This concept is already famous in countries like
Australia, United Kingdom and United States of America, etc. and is
becoming very popular in solar panels china market as well. Even
used solar panels are being used in these countries so that the
installation cost reduces further and it is easy for the people to
generate green energy.
4, Adventage:
100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
100% "Zero"
Defects Objective Before Shipment.
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system
5, FAQ
Q one.Do you have MOQ?
Depands on different ideas, Can be negotiated.The larger the
quantity is, the competitive the unit price will be.
Q two.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we
must get delivery fee.
If you tell me to use the appointed Express,you will give me your
express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q three .How about the after sale service?
1)We will always keep the quality the same with the same and if
there is something with the quality,we will make compensaton for
our coustomers.
2)We will suggest our packing and take charge in our packing,we
will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will
slove the problems in the selling for our coustomers.
Q four.When can I get a price?
We usually quote within 24hours after we get your inquiry.

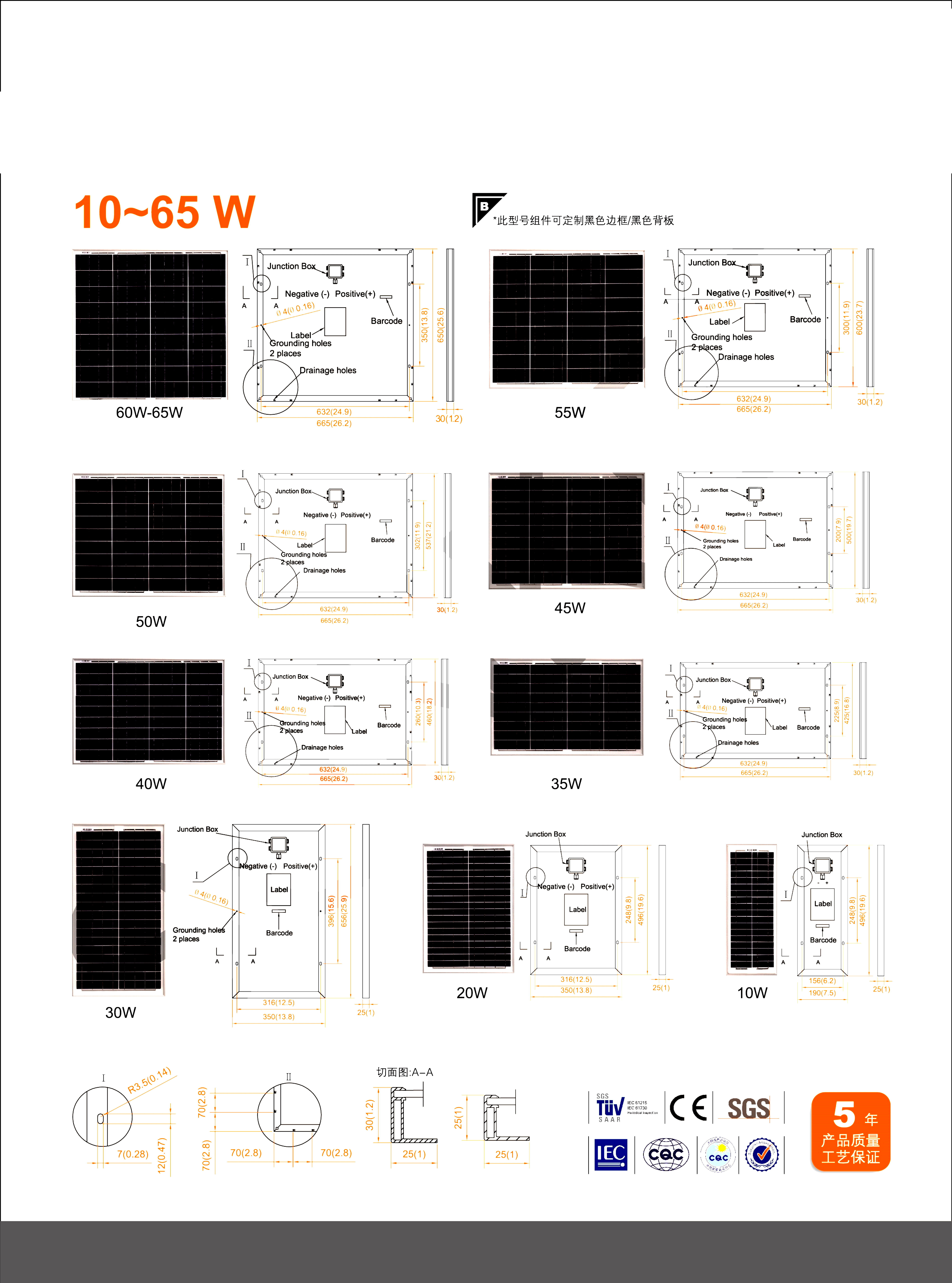

6, More picture:
 | Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection |
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID |  |
 | Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life |
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional) |  |
| Quantity(Watts) | 1 - 500 | >500 |
| | Est. Time(days) | 10 | To be negotiated |
|
Product Packing
Product Processing
Delivery
Our design developers has more than 10 years working experience in
solar energy field, all design engineers are working tirelessly to
perfect our products to make its always in the leading level. We
desire to solve 2B business, provide standardized products, core
competencies is high cost performance. we also desire to solve the
2C business and provide personalized products. The core
competencies are market, brand and sales channel. We are striving
to build KingSun to be an international leading manufacturer of
Solar terminal application products.
