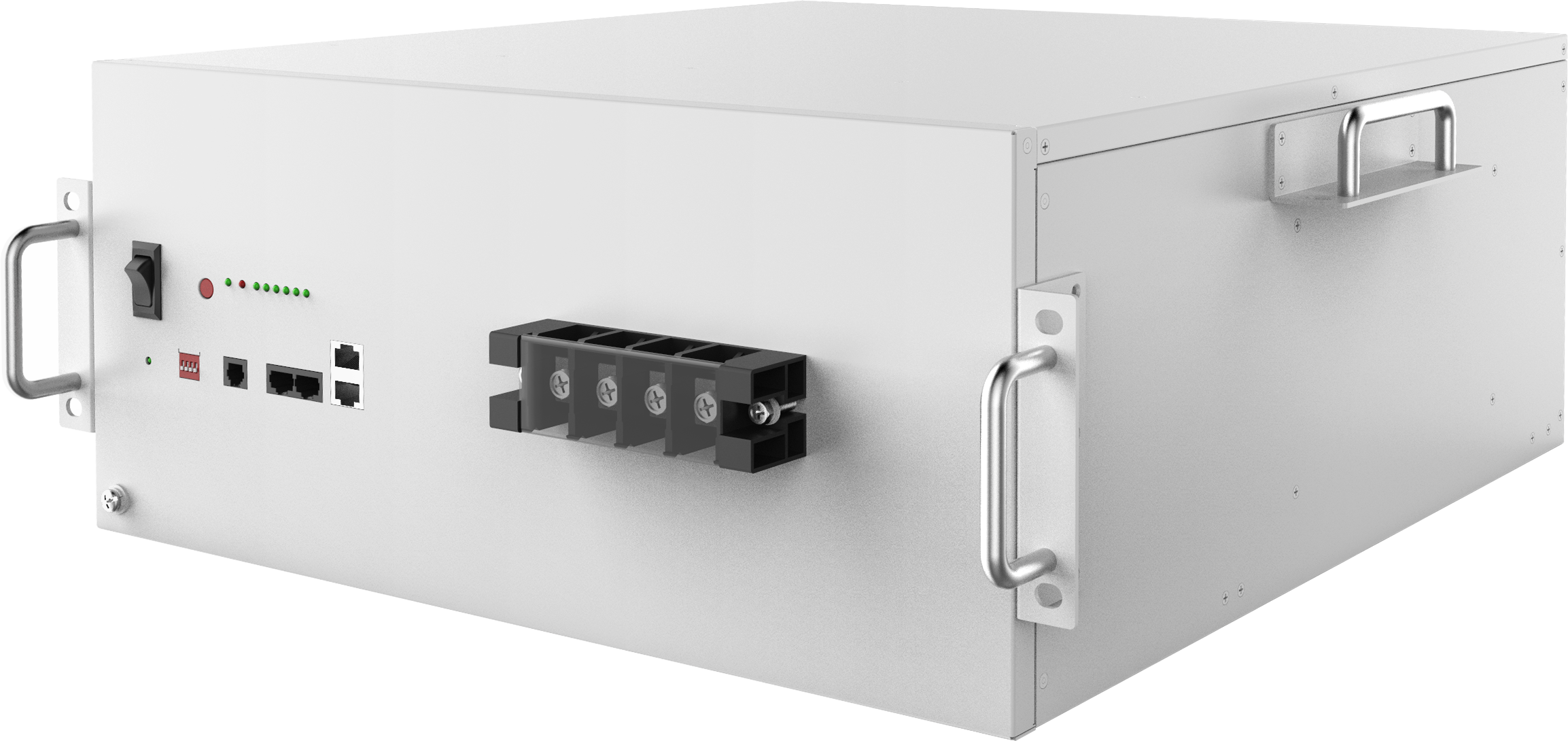

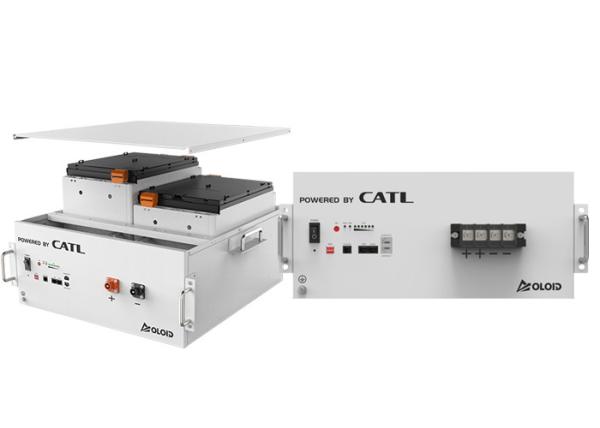

Solar Li Ion Battery 48v 105ah lithium battery pack for hybrid
solar system CATL
1, Description:
Modular structure design is able to compose varieties of electric
voltage platform flexibly, all kinds of capacity level systems, and
easy to maintain or repair.
The design of battery management system provides the highest
reliability.
Making use of lithium iron phosphate batteries with high safety
character, long cycling life, and more than ten years service life.
Small size, light weight, convenient to transport and deliver, and
can be quickly equipped to all kinds of occasions.
2, Parameters:
| Model | GTBL-5.12KW.H |
| Battery Type | LiFePO4 |
| Battery Box Configuration | 1P16S |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Total Energy | 5.12kWh |
| Electrical Parameters |
| Voltage Range | 44.8V-57.6V |
| Standard Charging Current | 50A |
| Max.Charging Current | 70A |
| Standard Discharge Current | 50A |
| Max.Discharging Current | 70A |
| Mechanical Parameters |
| Net Weight | ~50kg |
| Dimension (W*D*H) | 440*480*200mm |
| Ingress Protection | IP21 |
| Cooling | Natural Cooling |
| Operation Condition |
| Environment Temperature | Charge: 0°C-55°C/Discharge: -20°C-55°C/Storage: -10°C-30°C |
| Operation Humidity | 5-95%, RH |
| Altitude | v 2000m |
| Mounting Type | Stationary |
| Design Life | > 10 years |
3, Usage with Solar Li Ion Battery:
Wind-Solar energy system
Solar street lights
Off-grid energy storage
Household energy storage
Telecom backup system
Mobile base stations
Emergency backup energy sources
Uninterruptible power system
Grid load shifters
Electric Golf Car
Electric vehicles
Electric motorcycles
Electric forklifts
Electric boats, etc.
4, FAQ
Q one.Do you have MOQ?
Depands on different ideas, Can be negotiated.The larger the
quantity is, the competitive the unit price will be.
Q two.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we
must get delivery fee.
If you tell me to use the appointed Express,you will give me your
express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q three .How about the after sale service?
1)We will always keep the quality the same with the same and if
there is something with the quality,we will make compensaton for
our coustomers.
2)We will suggest our packing and take charge in our packing,we
will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will
slove the problems in the selling for our coustomers.
Q four.When can I get a price?
We usually quote within 24hours after we get your inquiry.
5, More picture:
Product Packing
Product Processing
Delivery
All products will be packaged with strong wooden box and pallet
during transportation .
Accept OEM service .
By Express | TNT, UPS, DHL, FEDEX , Door to Door Service |
By Air | Any Cargo Airport in China |
By Sea | Any available in China, such as Shanghai and Ningbo |
| GTBL-2.5kwh | GT-3.8kwh | GT-4.8kwh | GT-5kwh |
| Nominal voltage | 48V | 48V | 48V | 48V |
| Nominal capacity | 2400Wh | 3840Wh | 4800Wh | 5040Wh |
| Capacity | 50Ah | 80Ah | 100Ah | 105Ah |
| Battery type | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate |
| Usable capacity | 2500Wh | 3800Wh | 4800Wh | 5000Wh |
| Dimensions(L*H*D)mm | 495*236*200 | 495/236/280 | 495/236/280 | 495/236/280 |
| Weight | 27kg | 43kg | 46kg | 46kg |
| Voltage range | 38V~56.5V | 38V~56.5V | 38V~56V | 38V~56V |
| Max power | 3000W | 5000W | 5300W | 5500W |
| Peak power | 4200W for 30s | 6000W for 30s | 6600W for 30s | 6600W for 30s |
| Max charge current | 50A | 80A | 100A | 105A |
| Max discharge current | 80A | 120A | 130A | 130A |
| Communication port | RS485&CAN | RS485&CAN | RS485&CAN | RS485&CAN |
| Single string quantity | 15pcs | 15pcs | 15pcs | 15pcs |
| Working temperature | 0℃~45℃/-20℃~60℃ | 0℃~45℃/-20℃~60℃ | 0℃~45℃/-20℃~60℃ | 0℃~45℃/-20℃~60℃ |
| Shelf(< one month)/SOC | -10℃~35℃/50%-80% | -10℃~35℃/50%-80% | -10℃~35℃/50%-80% | -10℃~35℃/50%-80% |
| Humidity | <45% | <45% | <45% | <45% |
| Altitude | 2000m | 2000m | 2000m | 2000m |
| Design life | 15years(25℃/77℉) | 15years(25℃/77℉) | 10years(25℃/77℉) | 10years(25℃/77℉) |
| Cycle life | 6000,25℃ 90%DOD | 6000,25℃ 90%DOD | 3000,25℃ 90%DOD | 3000,25℃ 90%DOD |
| Authentication level | IEC62619/CE/UN38.3 | IEC62619/CE/UN38.3 | IEC62619/CE/UN38.3 | IEC62619/CE/UN38.3 |
| Enclosure protection rating | IP55 | IP55 | IP55 | IP55 |
Products Warranty:
We offer perfect warranty to all of our customers and offer best
after-sales service.
During warranty period, if any problem with our product self, we
will replace with new one to you or repair it for you.
